A 3-way duplex switch contains two 3-way switches on one body. Two of the common terminals are connected together with a removable metal tab. These terminals are usually connected to line voltage and can be black or bronze color depending on the manufacturer. This tab is removed to isolate the tabs from each other. Find 3-Way Duplex Switches

3-Way Duplex Switch Diagrams

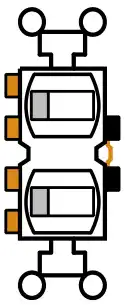

Common terminals black or bronze color. Metal tab connects the two common terminals together.

Traveler terminals

Traveler terminals

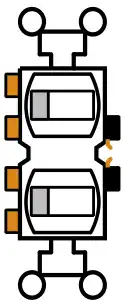

Metal tab removed to isolate the common terminals.

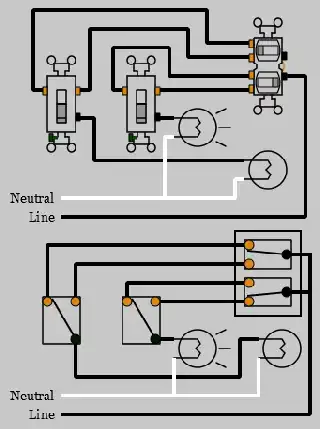

Duplex 3-way switch with conventional 3-way switches.

3-way Duplex Switch Wiring Diagram Ceiling Fan 3-way Duplex Switch Wiring Diagram

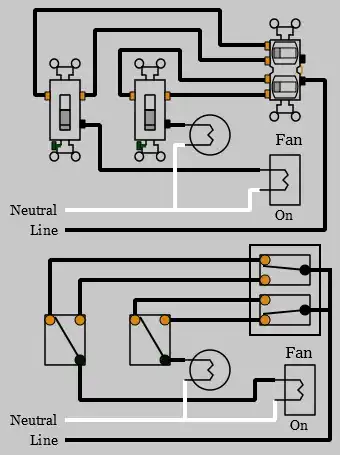

Ceiling fan diagram using duplex and conventional 3-way switches.

Duplex switch common terminals connect to one line. When duplex switch metal tab is removed, each common terminal connect can connect to a different line.

3-way Duplex Switch 3-way Duplex Switch No Tab Arrow left
