3-Way Switch Wiring Page 2

Question or Comment?

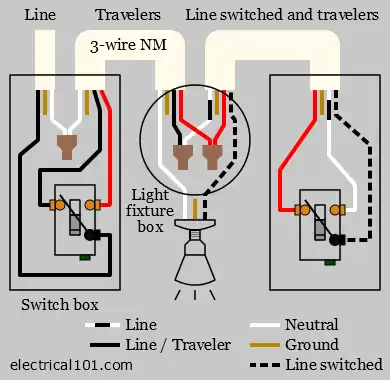

3-Way Toggle Switch Wiring Diagram Light Fixture Between Switches

3-way Light Switch Wiring Diagram 3

Line voltage enters the first 3-way switch outlet box, light fixture is located between switch boxes. No longer allowed after 2011 NEC (if no neutral wire in switch boxes).

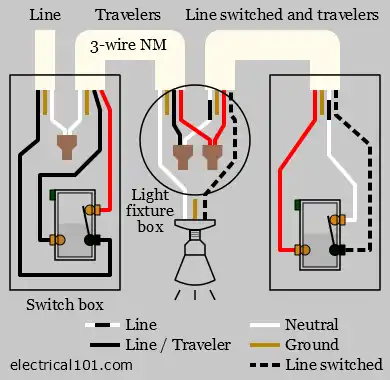

 3-Way Decora Switch Wiring Diagram Light Fixture Between Switches

3-way Light Switch Wiring Diagram 3
