Ceiling Fan and Light Kit Control Options

Line voltage enters the switch outlet box with the line wire and connects to each switch. Switched line terminals and the neutral wire connect to a 3-wire cable that travels to the light/fan outlet box in the ceiling.

The fan control switch usually connects to the black wire and the light kit switch to the red wire of a 3-way cable.

In this diagram, the black wire of the ceiling fan is for the fan, and the blue wire is for the light kit.

Ground connection diagram is shown separately.

Ceiling Fan Switch Wiring Diagrams

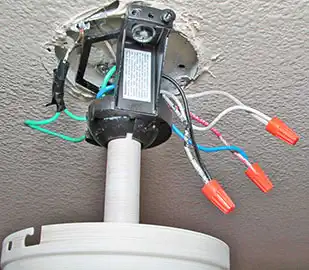

3-wire cable travels from the switch box and connects to the fan, lights, neutral, and ground wires.

Ground

Fan

Light

Kit

Neutral

Remote control receiver location

Ceiling Fan and Lights Outlet Box

Line voltage enters the switch outlet box with the line wire and connects to each switch. Switched line terminals and the neutral wire connect to two 2-wire cables that travel to the light/fan outlet box in the ceiling.

There are several ways to control ceiling fans and light kits.

One wire/switch - to turn power on/off to the fan (and lights) at the same time
Two wire/switches - one switch turns power on/off to the fan, the other to the lights

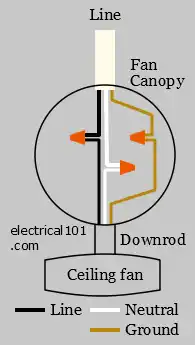

Pull chains - to adjust fan speed and lights
Remote - available on new or existing fans to adjust fan speed and lights

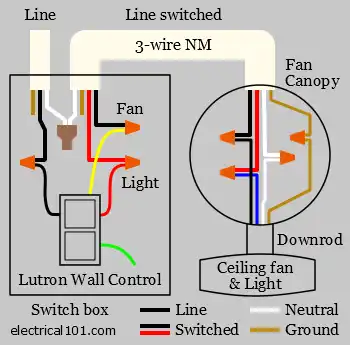

Wall control - to adjust fan speed and lights, wall controls are available for either one or two wire/switch configurations Find Light Switches

One Wire vs Two Wire Switch Wall Control

A one wire configuration uses one switch and one line wire to control power to a fan (and lights).

A two wire configuration uses two switches and two line wires each to control power to a fan and lights.

Ceiling Fan Switch Wiring

Ceiling Fan Switch Wiring Diagram using One 3-Wire NM

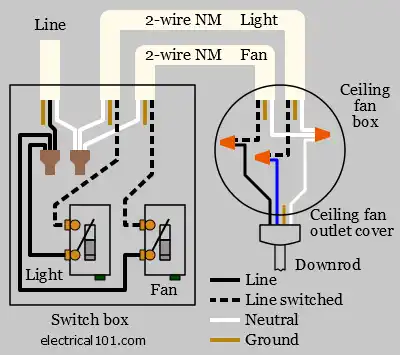

Ceiling Fan Switch Wiring Diagram using Two 2-Wire NM’s

Ceiling Fan Switch 2-wire Wiring Diagram

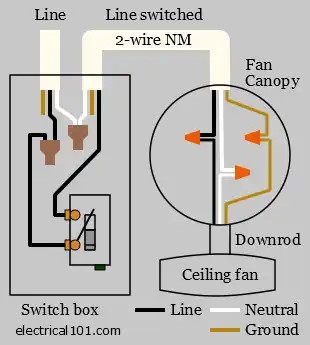

One-wire/switch configuration

Two-wire/switch configuration
